X Ray Baggage Scanner Machine System PY-6550

Enhance Security with the X-Ray Baggage Scanner Machine System PY-6550

Advanced Detection Capabilities

Superior Imaging Technology

The X-Ray Baggage Scanner Machine System PY-6550 is equipped with cutting-edge imaging technology that offers exceptional clarity and precision. With a tunnel size available in two dimensions—650mm (W) by 500mm (H) or 600mm (W) by 400mm (H)—this machine is designed to accommodate a variety of baggage sizes, making it ideal for security checkpoints in airports, train stations, and commercial buildings.

Robust Inspection Performance

Achieve outstanding steel penetration of up to 15 mm and clear imaging with wire resolution capabilities down to 38 AWG. The scanner’s conveyor system moves at a speed of 0.22 m/s, ensuring a quick and efficient security screening process without compromising safety or detail.

User-Friendly Operation and Features

Efficient Processing and Control

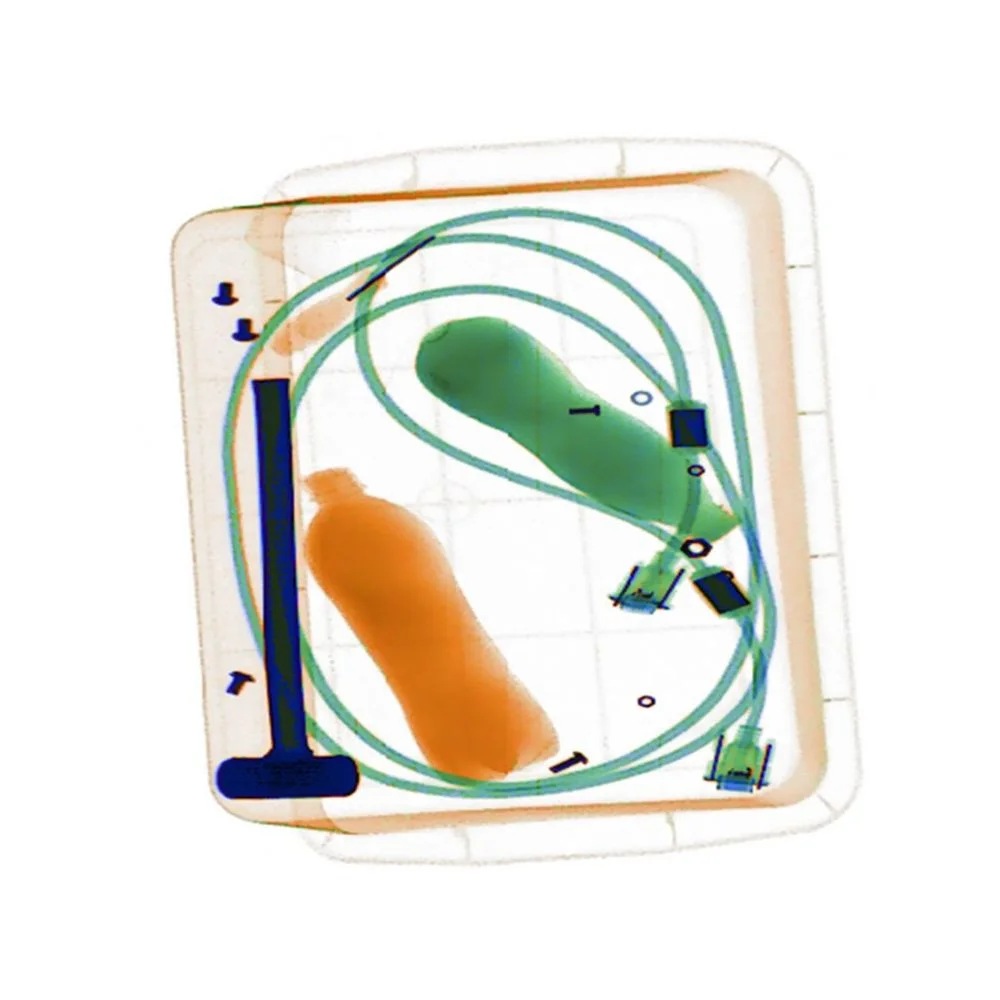

Equipped with a 19-inch color LCD monitor that displays high-resolution images (1280 x 1024 pixels), operators can easily identify and assess the contents of each bag. The system includes a variety of image enhancement functions such as high and low penetration views, organic and inorganic separation, and zoom capabilities, enhancing the operator’s ability to detect contraband and dangerous items quickly.

Safe and Secure

Designed with safety in mind, the PY-6550 ensures minimal X-ray leakage (less than 0.35 μGy/h at 5 cm distance), well below international health and safety standards. The machine also includes lead curtains to further reduce radiation exposure to operators and passengers.

Versatile Design and Integration

Flexible Installation Options

This model comes ready for various installation environments, offering features like bidirectional scanning and customizable software languages. Its robust design is suited for both indoor and outdoor use (if sheltered), operating effectively in temperatures ranging from -20°C to +60°C.

Network and Alarm Capabilities

The system’s networking function allows it to connect to a dedicated virtual LAN, and an efficient alarm system notifies operators of the detection of liquids and high-density substances with audio signals and visual cues.

Specifications for Technical Assurance

• Power Efficient: Operates on a standard AC power supply (110~240VAC), consuming less than 0.5 kW/h.
• Quiet Operation: Maintains a low noise level of less than 56dB, ensuring a non-disruptive environment.
• Heavy-Duty Load Capacity: Can handle up to 180 kg (397 lbs.) on its conveyor, accommodating even the heaviest of luggage items.
• Film Safety: Guaranteed to be safe for high-speed film up to ISO 1600.

Ideal for High-Security Areas

Whether securing an airport, corporate building, or government facility, the X-Ray Baggage Scanner Machine System PY-6550 is your go-to choice for high-security environments. It combines advanced technological features with ease of use and minimal maintenance requirements, making it a top choice for enhancing security measures and preventing potential threats.

Choose the PY-6550 for Comprehensive Security and Efficiency

Opt for the PY-6550 for its reliability, advanced features, and commitment to safety. Its superior imaging technology and user-friendly interface make it an essential tool for any security-sensitive operation looking to modernize and streamline their inspection processes.
