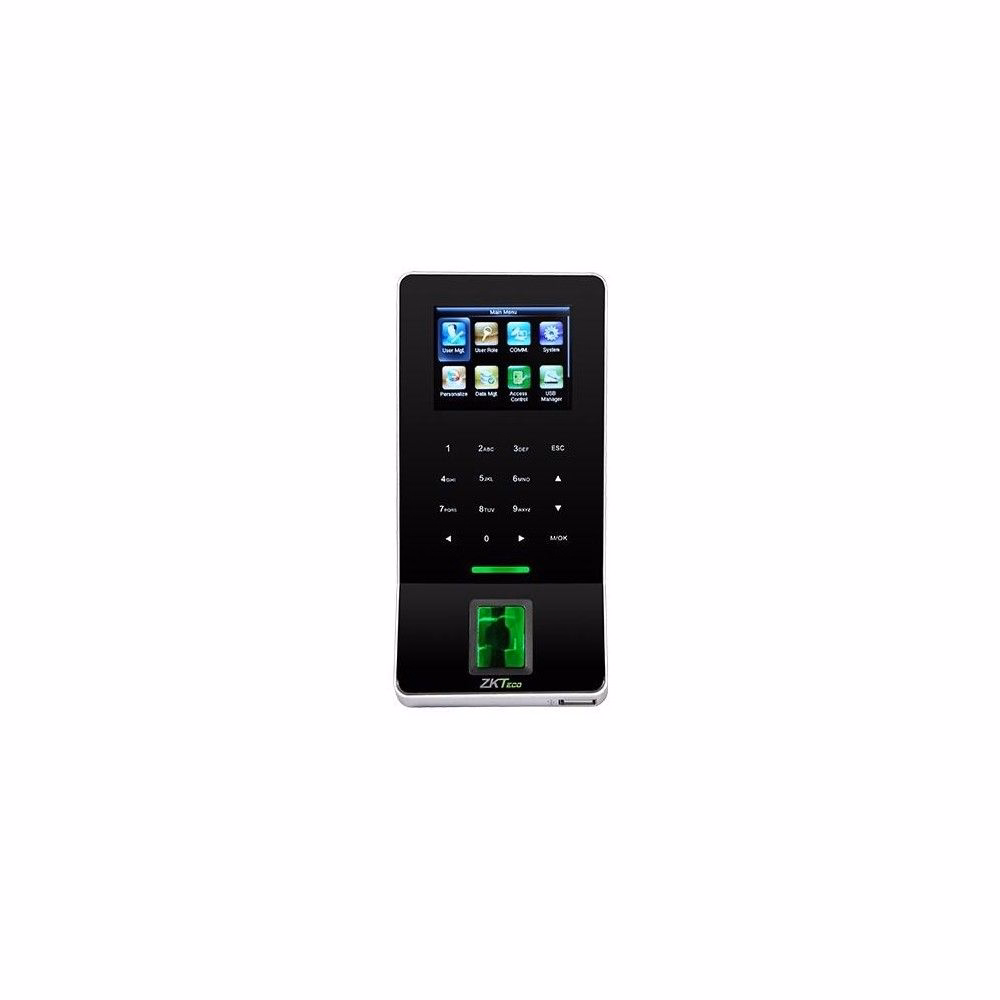

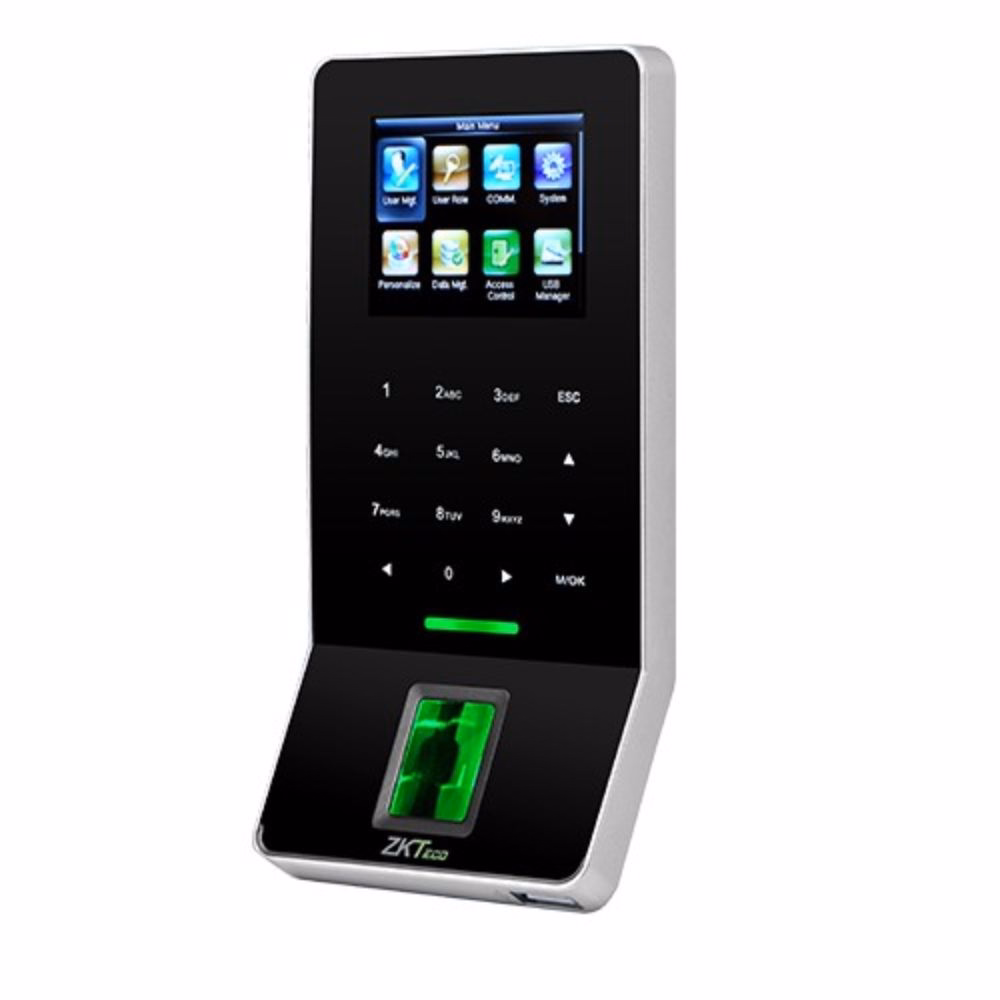

F22 Access Control Machine
F22 Access Control Machine
F22 Access Control Machine
Click to enlarge
F22 Access Control Machine
F22 Access Control Machine
F22 Access Control Machine

F22 Access Control Machine

Product Features:

  • 2.4″ TFT LCD color screen display
  • Stores 3,000 fingerprints & 5,000 ID/Mifare cards
  • 30,000 transaction log capacity
  • High-speed Z-ID sensor with ZKFinger V10.0 algorithm

Original price was: ₨ 28,500.Current price is: ₨ 27,500.

Add to wishlist

Description

F22 Access Control Machine:

Smartcore advanced F22 Access Control Machine 2.4-inch TFT LCD color screen and supports multiple verification methods, including optional fingerprint recognition (up to 3,000 templates) and ID/Mifare card capacity of 5,000 users. With a robust transaction storage of 30,000 records, it is equipped with a high-performance Z-ID sensor running on the ZKFinger V10.0 algorithm for fast and accurate fingerprint matching. Designed for flexible installation, it supports multiple communication modes including RS232, RS485, TCP/IP, USB-host, and Wi-Fi. The terminal also offers extensive access control interfaces for integration with 3rd-party electric locks, door sensors, exit buttons, and alarms.

Technical Specification

Display2.4-inch TFT LCD Color Screen
Fingerprint Capacity3,000 (Optional)
Card Capacity5,000 (Optional) - ID or Mifare Card
Transaction Capacity30,000
SensorZ-ID Sensor
AlgorithmZKFinger V10.0
CommunicationRS232*, RS485*, TCP/IP, USB-host, Wi-Fi
Access Control InterfaceElectric Lock, Door Sensor, Exit Button, Alarm
Wiegand SignalInput, Output
Auxiliary Input1 (for linkage function)
FunctionsDST, Record Query, T9 Input, 14-digit User ID, Anti-passback, Scheduled Bell, ADMS, Printer (Optional)
Power Supply12V DC, 3A
Operating Temperature0°C ~ 45°C
Operating Humidity20% ~ 80%
Dimensions (L x W x H)158.5 x 78.0 x 19.4 mm
Software & SDKStandalone SDK, ZKBio Access IVS
