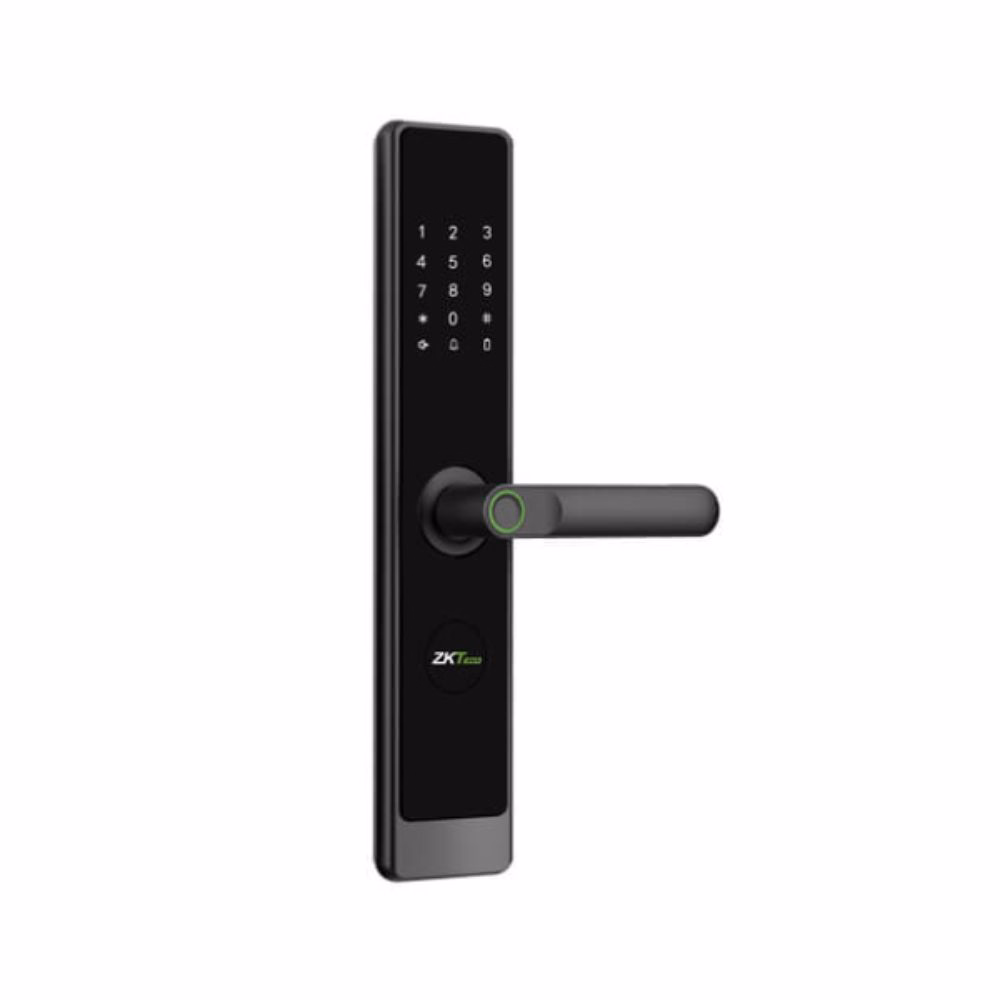

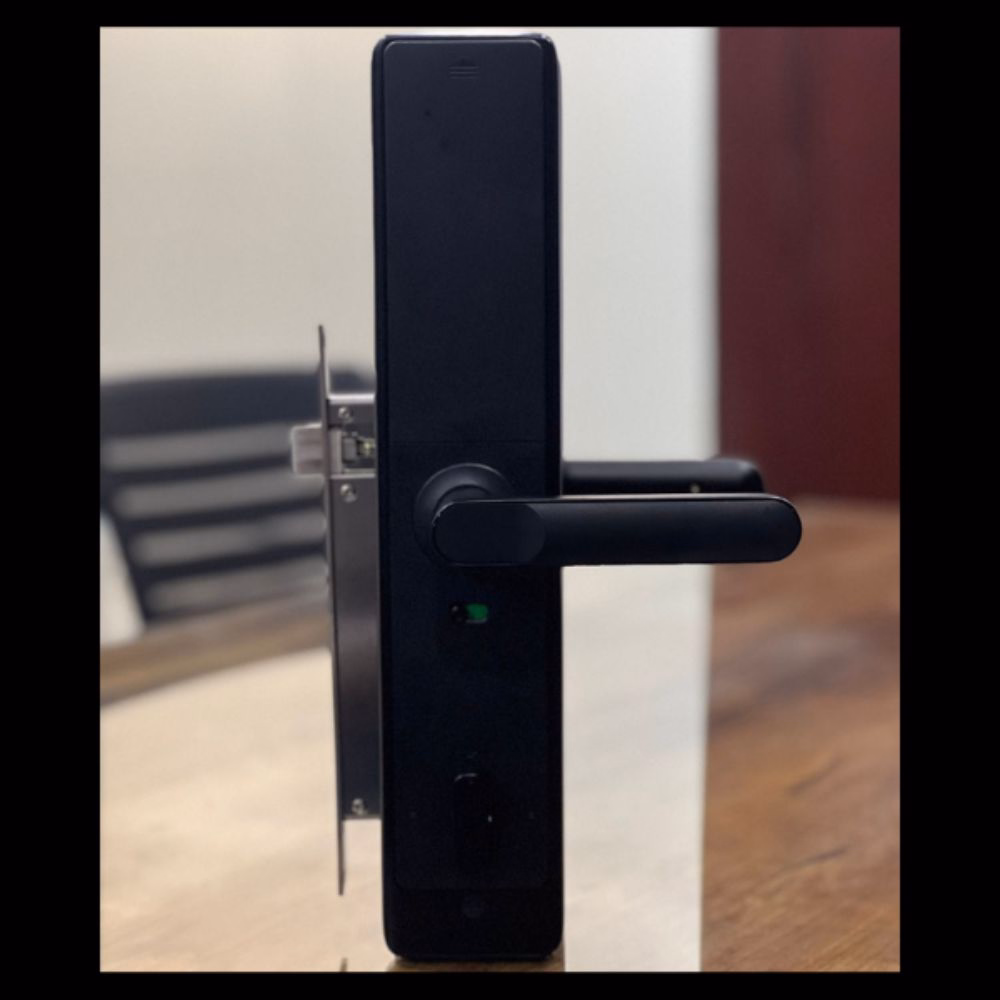

Zkteco TL700 Smart Door Lock

Product Features:

  • Built-in childproofing prevents accidental unlocking from inside
  • Integrated doorbell—no need for separate installation
  • Multiple access methods: 100 fingerprints, 100 IC cards, 50 passwords
  • Class C security cylinder with mortise protection for high security

 38,000

Description

Zkteco TL700 Smart Door Lock:

Smartcore Zkteco TL700 Smart Door Lock is a smart fingerprint door lock thoughtfully designed with childproofing features and a built-in doorbell, offering enhanced safety and convenience for residential use. Ideal for families with young children, the lock prevents accidental unlocking from inside, keeping kids secure indoors. With the integrated doorbell, there’s no need for separate installations, reducing hardware clutter. The TL700 supports multiple access modes, including fingerprints (up to 100 users), IC S50 cards (100 users), and PIN codes (up to 50 passwords). Powered by 4 AA alkaline batteries, it includes a low battery warning and an emergency Micro USB interface for backup power.

Technical Specification

Fingerprint Capacity 100
IC Card Capacity (S50) 100
Password Capacity 50
Power Supply 4 Ă— AA Alkaline Batteries
Low Battery Warning 4.5V – 4.8V
Emergency Power Interface Micro USB 5V
Mortise Type Chinese Standard Mortise (6068)
Childproofing Feature Supported
Doorbell Integration Supported
Random Password Input Supported
Door Thickness Compatibility 45–60 mm (Customizable)
Operating Temperature -20°C to 60°C
Operating Humidity 10% RH to 90% RH
Outdoor Unit Dimensions 370 Ă— 75 Ă— 24 mm
Indoor Unit Dimensions 370 Ă— 75 Ă— 24.8 mm
Application Duplexes, Townhouses, Apartments, Condos
